1.30.076.321/0000 | RAFI

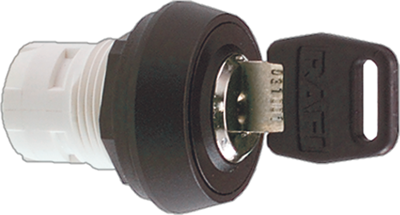

Name: Key switch, unlit, latching, waistband round, black, 2 x 90°, trigger position 0, mounting Ø 16.2 mm, 1.30.076.321/0000
Brand: RAFI
SKU: 12G6479
Price: 24.12 EUR
Availability: OutOfStock

Key switch, unlit, latching, waistband round, black, 2 x 90°, trigger position 0, mounting Ø 16.2 mm, 1.30.076.321/0000

Order No.: 12G6479

EAN: 4099889247480

MPN:

1.30.076.321/0000

Series: RAFIX 16

Image may differ

Key Specification:

Version key switch

Contact function latching

Collar shape of the front frame round

can be illuminated No

Show 8 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

24.1213 € *

Available: 0 pcs.

Leadtime: 15 Weeks **

Add to Cart

Total Price:

24.12 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Key switch, Collar round, rastend, Angle of rotation 2 x 90°

Technical specifications

	Version	key switch
	Type of mounting	threaded ring
	can be illuminated	No
	Collar shape of the front frame	round
	Rotation angle	2 x 90°
	Installation diameter	16.2 mm
	Installation height	27.95 mm
	Installation depth	44.7 mm
	Actuator colour	black
	Contact function	latching
	Protection class	IP65
	Trigger position key	0

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Product Change Notification - EN Product Change Notification

Technical Data Sheet - DE Technical Data Sheet

Product Change Notification - DE Product Change Notification

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
