1.30.076.721/0000 | RAFI

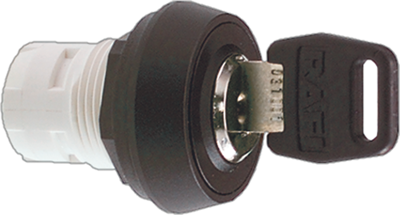

Name: Key switch, unlit, latching, waistband round, black, 2 x 40°, trigger position 0, mounting Ø 16.2 mm, 1.30.076.721/0000
Brand: RAFI
SKU: 12G6482
Availability: OutOfStock

Key switch, unlit, latching, waistband round, black, 2 x 40°, trigger position 0, mounting Ø 16.2 mm, 1.30.076.721/0000

Order No.: 12G6482

EAN: 4099889247503

MPN:

1.30.076.721/0000

Image may differ

Key Specification:

Version Schlüsselschalter

Contact function rastend

Collar shape of the front frame rund

can be illuminated No

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Key switch, unlit, groping, waistband round, black, 40°, trigger position 0, mounting Ø 16.2 mm, 1.30.076.521/0000

Order No.: 12G6478

Manufacturer: RAFI

per pc. 33.0939 € *

*incl. VAT plus shipping costs

Description

Key switch, Collar round, tastend, Angle of rotation 2 x 40°

Technical specifications

	Version	Schlüsselschalter
	Type of mounting	Gewindering
	can be illuminated	No
	Collar shape of the front frame	rund
	Rotation angle	2 x 40°
	Installation diameter	16.2 mm
	Installation height	27.95 mm
	Installation depth	44.7 mm
	Actuator colour	schwarz
	Contact function	rastend
	Protection class	IP66
	Trigger position key	0

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Produktänderung - EN Produktänderung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Produktänderung - DE Produktänderung

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Replacement

1.30.076.521/0000 RAFI Actuators, Signal Elements and Front Elements — Image may differ

Key switch, unlit, groping, waistband round, black, 40°, trigger position 0, mounting Ø 16.2 mm, 1.30.076.521/0000

Order No.:

12G6478

Manufacturer SKU:

1.30.076.521/0000

Available: 11 pcs. Leadtime: 4 Weeks **

33.09 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale
