1.30.240.221/1300 | RAFI

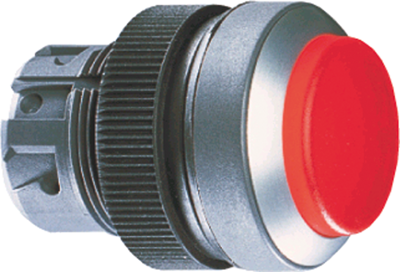

Pushbutton, illuminable, groping, waistband round, red, front ring silver, mounting Ø 22.3 mm, 1.30.240.221/1300

Order No.: 12G8022
EAN: 4099889249866
MPN:
1.30.240.221/1300
Series: RAFIX 22 QR
RAFI
1.30.240.221/1300 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
6.6997 € *
Available: 1 pcs.
Leadtime: 8 Weeks **
Total Price:
6.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.6997 €

Pushbutton, illuminated, raised metalized front ring, series RAFIX 22QR

type: 1.30.240.221/1300

With round collar and raised translucent lens; Contact action: momentary. With metalized front ring, lens Color red.

suitable for panel-mount diameter of 22.3 mm to IEC 60947,contact blocks and lamp sockets . You can combine these as required by snapping them together. Degree of protection at the switchboard front: IP 65. Operating temperatures: - 25 to +70 °C. Mounting position: any. Screw terminals. Safety class: II. Contact system: self-cleaning bridge contact. Actuating force: 5.0 N per element. Operating current with silver-plated contacts: 250 V/6.0 A (125 V/10 A, 400 V/13.5 A). Operating current with gold-plated contacts: 1.0 to 35 V AC/DC/0.01 to 100 mA UC. Rated insulation voltage: 400 VAC. Rated surge voltage: 6.0 kV. Force released NC contact to IEC 94-5-1.

Technical specifications
Version pushbutton
Type of mounting threaded ring
can be illuminated Yes
Collar shape of the front frame round
Installation diameter 22.3 mm
Installation height 12.45 mm
Installation depth 56.4 mm
Actuator colour red
Front ring colour silver
Contact function groping
Protection class IP65
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
