1.30.242.501/0201 | RAFI
Selector switch, illuminable, groping, waistband round, front ring black, 1 x 40°, mounting Ø 22.3 mm, 1.30.242.501/0201
Unit Price (€ / pc.)
10.9837 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

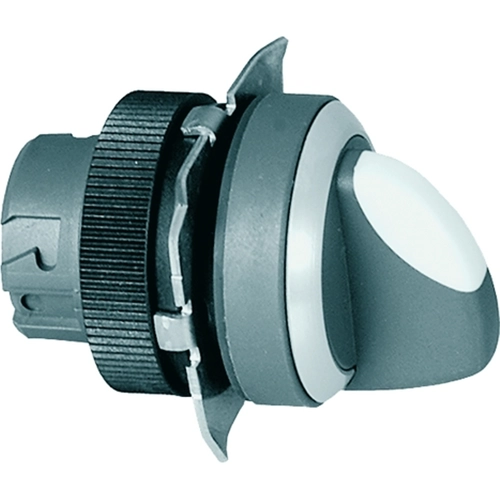

Selector switch, 1.30.242.501/0201, RAFI
RAFIX switching element is snapped into the coupling, then is snapped onto the actuating element or the signal lamp. To release, a bayonet lever must be actuated.
Features
- Design adaptations through different front ring colors
- Firmly molded collar seal, cannot twist or be lost during installation
- Additional protection against twisting due to threaded ring with claw
- Robust - suitable also for operation with gloves
Technical specifications
| Ausführung | Wahlschalter | |
| Befestigungsart | Gewindering | |
| Beleuchtbar | Yes | |
| Bundform | rund | |
| Drehwinkel | 1 x 40° | |
| Einbaudurchmesser | 22.3 mm | |
| Einbauhöhe | 22.3 mm | |
| Einbautiefe | 56.4 mm | |
| Farbe Frontring | schwarz | |
| Kontaktfunktion | tastend | |
| Schutzart (Betätigungsseite) | IP65 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
