1.30.249.001/0000 | RAFI

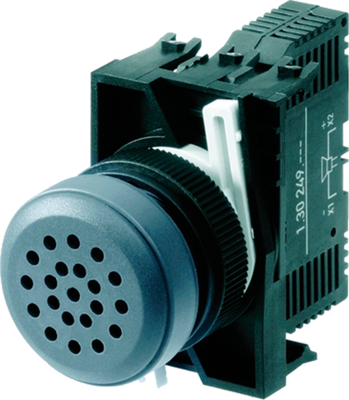

Acoustic signal transmitter, unlit, waistband round, gray, front ring gray, mounting Ø 22.3 mm, 1.30.249.001/0000

Order No.: 36M888
EAN: 4099889253078
MPN:
1.30.249.001/0000
Series: RAFIX 22 QR
RAFI
1.30.249.001/0000 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
34.4743 € *
Available: 13 pcs.
Leadtime: 8 Weeks **
Total Price:
34.47 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
34.4743 €

Piezo buzzers, series RAFIX 22QR, type 1.30.249.

Suitable for panel-mount diameter of 22.3 mm to IEC 60947, Signal generator with high signal level, continuous sound.

Operating voltage: 24 VDC

Current consumption: 25 mA

Sound pressure at 1.0 m distance: at least 70 dB

Degree of protection: IP 65

Type: 1.30.249.001/0000, Piezo buzzer

Technical specifications
Version acoustic signal transmitter
Type of mounting threaded ring
can be illuminated No
Collar shape of the front frame round
Installation diameter 22.3 mm
Installation height 9.8 mm
Installation depth 56.4 mm
Actuator colour gray
Front ring colour gray
Protection class IP65
Logistics
Country of origin HU
Customs tariff number 85318070
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
