1.30.270.021/2300 | RAFI

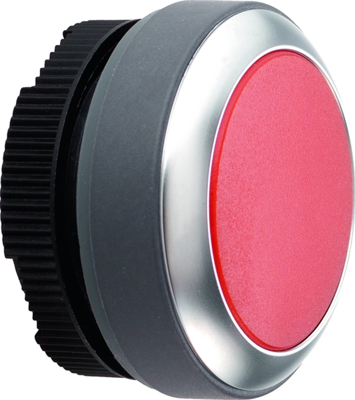

Pushbutton, illuminable, groping, waistband round, red, front ring silver, mounting Ø 22.3 mm, 1.30.270.021/2300
Unit Price (€ / pc.)
9.8532 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
9.85 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8532 €
10 pcs.
8.6751 €
50 pcs.
8.0920 €
150 pcs.
7.7231 €
500 pcs.
7.3304 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ultra-flat control elements, series RAFIX 22FS+, type RAFI 1.20.
Mounting depth: 9.2 mm. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: –25 to +70 °C. PCB connection with anti-twist mechanism. Pushbutton travel: 4.0 mm. End stop strength: 100 N. NC contacts: force released to IEC 947-5-1. Operating voltage: 35 VUC. Operating current: 100 mA UC. Power: max. 250 mW. Switching element: gold contacts. Illumination: 3.0 mm LED.
Pushbuttons with metal bezel series RAFIX 22FS+.
Actuator flush with bezel, direct action to the contact block. Metallic bezel.
Illuminated, type RAFIX 22FS+.
Function: momentary. Actuator: colored, translucent.
Type: 1.30.270.021/2300, red
Technical specifications
| Ausführung | Drucktaster | |
| Befestigungsart | Gewindering | |
| Beleuchtbar | Yes | |
| Bundform | rund | |
| Einbaudurchmesser | 22.3 mm | |
| Einbauhöhe | 9.85 mm | |
| Einbautiefe | 9.2 mm | |
| Farbe Betätiger | rot | |
| Farbe Frontring | silber | |
| Kontaktfunktion | tastend | |
| Schutzart (Betätigungsseite) | IP65 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
