1.30.270.071/2600 | RAFI

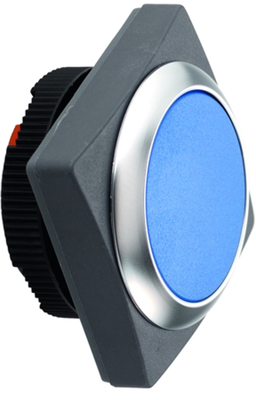

Pushbutton, illuminable, groping, waistband square, blue, front ring silver, mounting Ø 22.3 mm, 1.30.270.071/2600
Unit Price (€ / pc.)
7.4256 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Pushbutton series RAFIX 22FS+
Type: 1.30.270.071/2600
Version: illuminated
Color: blue
Function: momentary
Actuator: colored, translucent
Actuator flush with bezel, direct action to the contact block. Metallic bezel. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.
Technical specifications
| Version | pushbutton | |
| Type of mounting | threaded ring | |
| can be illuminated | Yes | |
| Collar shape of the front frame | square | |
| Installation diameter | 22.3 mm | |
| Installation height | 9.85 mm | |
| Installation depth | 9.2 mm | |
| Actuator colour | blue | |
| Front ring colour | silver | |
| Contact function | groping | |
| Protection class | IP65 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
