1.30.270.911/2207 | RAFI

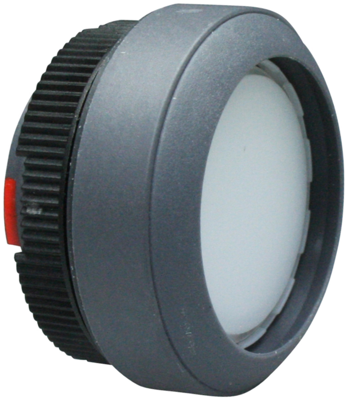

Pushbutton switch, illuminable, latching, waistband round, white, front ring gray, mounting Ø 22.3 mm, 1.30.270.911/2207
Unit Price (€ / pc.)
12.4236 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Pushbutton series RAFIX 22FS+ FLEXLAB
Type: 1.30.270.911/2207
Version: illuminated
Front ring color: slate gray
Function: latching
Collar: round
Actuator flush with bezel, direct action to the contact block. Plastic front ring. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.
Technical specifications
| Ausführung | Druckschalter | |
| Befestigungsart | Gewindering | |
| Beleuchtbar | Yes | |
| Bundform | rund | |
| Einbaudurchmesser | 22.3 mm | |
| Einbauhöhe | 9.85 mm | |
| Einbautiefe | 9.2 mm | |
| Farbe Betätiger | weiß | |
| Farbe Frontring | grau | |
| Kontaktfunktion | rastend | |
| Schutzart (Betätigungsseite) | IP65 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
