1.30.270.951/2201 | RAFI

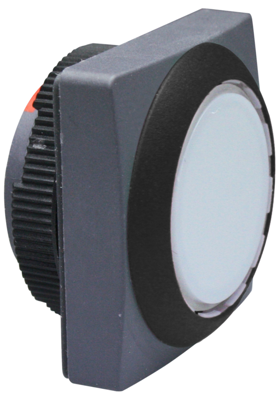

Pushbutton, illuminable, groping, waistband square, white, front ring black, mounting Ø 22.3 mm, 1.30.270.951/2201
Unit Price (€ / pc.)
6.1999 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Pushbutton series RAFIX 22FS+ FLEXLAB
Type: 1.30.270.951/2201
Version: illuminated
Front ring color: black
Function: momentary
Collar: square
Actuator flush with bezel, direct action to the contact block. Plastic front ring. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.
Technical specifications
| Ausführung | Drucktaster | |
| Befestigungsart | Gewindering | |
| Beleuchtbar | Yes | |
| Bundform | quadratisch | |
| Einbaudurchmesser | 22.3 mm | |
| Einbauhöhe | 9.85 mm | |
| Einbautiefe | 9.2 mm | |
| Farbe Betätiger | weiß | |
| Farbe Frontring | schwarz | |
| Kontaktfunktion | tastend | |
| Schutzart (Betätigungsseite) | IP65 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
