1.30.282.201/2201 | RAFI

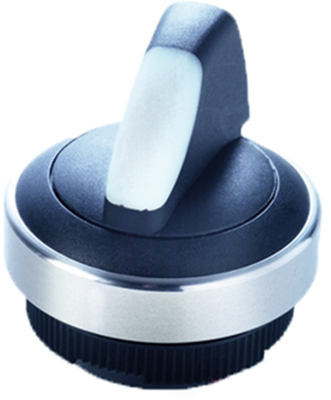

Selector switch, illuminable, latching, waistband round, white/black, front ring black, 90°, mounting Ø 22.3 mm, 1.30.282.201/2201
Unit Price (€ / pc.)
22.0864 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Selector switch, illuminated, marked toggle, black front ring, series RAFIX 22 FSR
Type: 1.30.282.201/2201
Actuator: handle
Toggle marking: white, translucent
Color of front ring: black
Form of collar: round
Dimensions of collar: 31.3 mm
Mounting hole: 22.3 mm
Mounting: ring nut
Contact function: latching action
Illuminability: yes
Rotating angle: 1 x 90°, V shape
Protection: IP69
Technical specifications
| Ausführung | Wahlschalter | |
| Befestigungsart | Gewindering | |
| Beleuchtbar | Yes | |
| Bundform | rund | |
| Drehwinkel | 90° | |
| Einbaudurchmesser | 22.3 mm | |
| Einbauhöhe | 23.8 mm | |
| Einbautiefe | 9.2 mm | |
| Farbe Betätiger | weiß/schwarz | |
| Farbe Frontring | schwarz | |
| Kontaktfunktion | rastend | |
| Schutzart (Betätigungsseite) | IP65 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
