1.30.285.321/0100 | RAFI
Key switch, unlit, latching, waistband round, black, front ring black, 90°, trigger position 0 + 1, mounting Ø 22.3 mm, 1.30.285.321/0100
Unit Price (€ / pc.)
48.2545 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

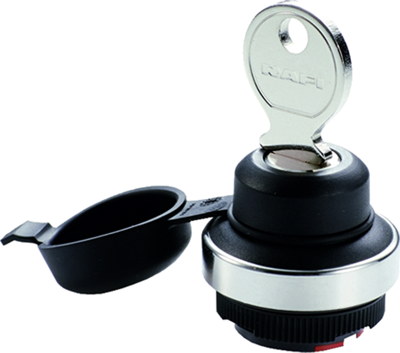

Keylock switch with black front ring and plastic cap for protection, series RAFIX 22 FSR
type: 1.30.285.321/0100
Color of front ring: black
Form of collar: round
Dimensions of collar: 31.3 mm
Mounting hole: 22.3 mm
Mounting: ring nut
Contact function: latching action
Rotating angle: 1 x 90°, Form V
Key removal position: 0 +1
Wafer: 5
Lock type: 001
Included: threaded ring with claw and 2 keys
Protection: IP69
Technical specifications
| Version | key switch | |
| Type of mounting | threaded ring | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Rotation angle | 90° | |
| Installation diameter | 22.3 mm | |
| Installation height | 45.6 mm | |
| Installation depth | 9.2 mm | |
| Actuator colour | black | |
| Front ring colour | black | |
| Contact function | latching | |
| Protection class | IP65 | |
| Trigger position key | 0 + 1 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
