1.74.508.001/2200 | RAFI

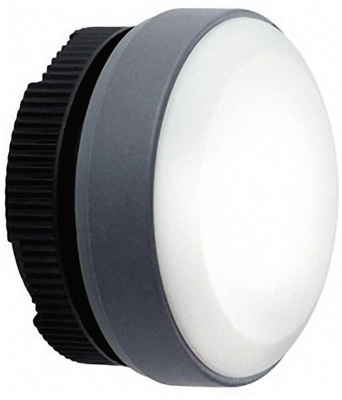

Name: Light attachment, illuminable, waistband round, white, mounting Ø 22.3 mm, 1.74.508.001/2200
Brand: RAFI
SKU: 12G9235
Price: 4.39 EUR
Availability: OutOfStock

Light attachment, illuminable, waistband round, white, mounting Ø 22.3 mm, 1.74.508.001/2200

Order No.: 12G9235

EAN: 4099889250381

MPN:

1.74.508.001/2200

Series: RAFIX 22 FS+

Image may differ

Key Specification:

Version light attachment

Collar shape of the front frame round

can be illuminated Yes

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.3911 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

4.39 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Lamp attachment with round collar for LED sockets series RAFIX 22FS+

type: 1.74.508.001/2200

Color: white translucent

Mounting: threaded ring

Panel cut-out: 22.3 mm

Degree of protection: IP 65

Operating temperatures: - 25 to +70 °C

Technical specifications

	Version	light attachment
	Type of mounting	threaded ring
	can be illuminated	Yes
	Collar shape of the front frame	round
	Installation diameter	22.3 mm
	Installation height	9.7 mm
	Installation depth	9.2 mm
	Actuator colour	white
	Protection class	IP65

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	HU
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
