1.74.508.051/2300 | RAFI

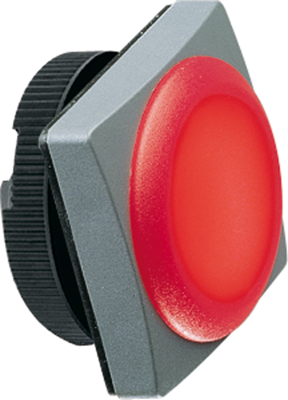

Name: Light attachment, illuminable, waistband square, red, mounting Ø 22.3 mm, 1.74.508.051/2300
Brand: RAFI
SKU: 12G9184
Price: 4.21 EUR
Availability: OutOfStock

Light attachment, illuminable, waistband square, red, mounting Ø 22.3 mm, 1.74.508.051/2300

Order No.: 12G9184

EAN: 4099889250350

MPN:

1.74.508.051/2300

Series: RAFIX 22 FS+

Image may differ

Key Specification:

Ausführung Leuchtvorsatz

Bundform quadratisch

Beleuchtbar Yes

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.2126 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Add to Cart

Total Price:

4.21 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Lamp attachment with square collar for LED sockets series RAFIX 22FS+

type: 1.74.508.051/2300

Color: red translucent

Mounting: threaded ring

Panel cut-out: 22.3 mm

Degree of protection: IP 65

Operating temperatures: - 25 to +70 °C

Technical specifications

	Ausführung	Leuchtvorsatz
	Befestigungsart	Gewindering
	Beleuchtbar	Yes
	Bundform	quadratisch
	Einbaudurchmesser	22.3 mm
	Einbauhöhe	9.7 mm
	Einbautiefe	9.2 mm
	Farbe Betätiger	rot
	Schutzart (Betätigungsseite)	IP65

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	HU
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
