1.74.509.011/2300 | RAFI

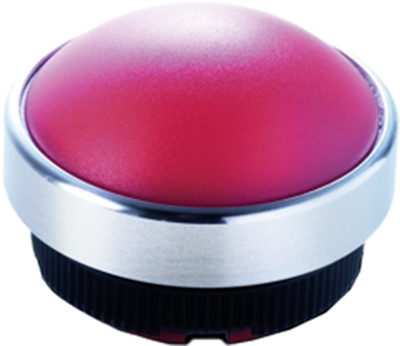

Name: Light attachment, illuminable, waistband round, red, mounting Ø 22.3 mm, 1.74.509.011/2300
Brand: RAFI
SKU: 12G9783
Price: 15.78 EUR
Availability: OutOfStock

Light attachment, illuminable, waistband round, red, mounting Ø 22.3 mm, 1.74.509.011/2300

Order No.: 12G9783

EAN: 4099889252545

MPN:

1.74.509.011/2300

Series: RAFIX 22 FSR

Image may differ

Key Specification:

Ausführung Leuchtvorsatz

Bundform rund

Beleuchtbar Yes

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

15.7794 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Total Price:

15.78 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Lamp attachment with round collar, for LED-socket, series RAFIX 22 FSR

Typ: 1.74.509.011/2300

Color of lens: translucent red

Form of collar: round

Mounting hole: 22.3 mm

Mounting: ring nut

Illuminability: yes

Degree of protection from front side: IP69

Technical specifications

	Ausführung	Leuchtvorsatz
	Befestigungsart	Gewindering
	Beleuchtbar	Yes
	Bundform	rund
	Einbaudurchmesser	22.3 mm
	Einbauhöhe	12.2 mm
	Einbautiefe	9.2 mm
	Farbe Betätiger	rot
	Schutzart (Betätigungsseite)	IP69K

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	HU
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
