1.74.509.011/2500 | RAFI

Name: Light attachment, illuminable, waistband round, green, mounting Ø 22.3 mm, 1.74.509.011/2500
Brand: RAFI
SKU: 12G9785
Price: 15.78 EUR
Availability: OutOfStock

Light attachment, illuminable, waistband round, green, mounting Ø 22.3 mm, 1.74.509.011/2500

Order No.: 12G9785

EAN: 4099889252569

MPN:

1.74.509.011/2500

Series: RAFIX 22 FSR

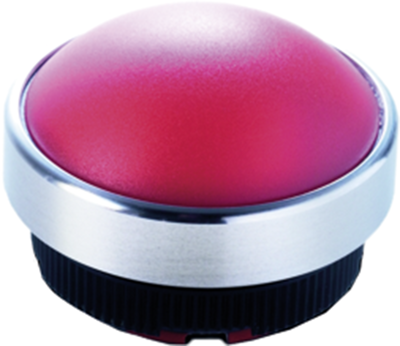

Image may differ

Key Specification:

Version light attachment

Collar shape of the front frame round

can be illuminated Yes

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

15.7794 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

15.78 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Lamp attachment with round collar, for LED-socket, series RAFIX 22 FSR

Typ: 1.74.509.011/2500

Color of lens: translucent green

Form of collar: round

Mounting hole: 22.3 mm

Mounting: ring nut

Illuminability: yes

Degree of protection from front side: IP69

Technical specifications

	Version	light attachment
	Type of mounting	threaded ring
	can be illuminated	Yes
	Collar shape of the front frame	round
	Installation diameter	22.3 mm
	Installation height	12.2 mm
	Installation depth	9.2 mm
	Actuator colour	green
	Protection class	IP69K

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	HU
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
