1.30.283.111/0300 | RAFI

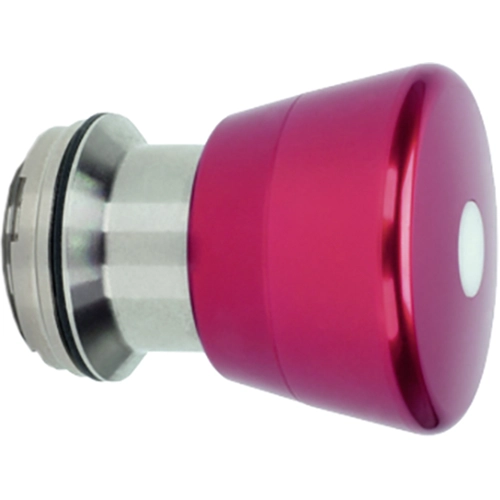

Emergency stop pushbutton, 1.30.283.111/0300, RAFI

The 1.30.283.111/0300 is defined as modular element, consisting of an actuating element, if necessary a coupling and an individual contact or lighting unit. Actuating elements (such as pushbuttons, emergency stop actuators, etc.) have the intended tactility, reset and function only when assembled with the appropriate switching elements. Thanks to a forcibly actuated mechanical motion sequence, it is dupe-proof in accordance with DIN EN ISO 13850. In order to prevent unintentional actuation, a tactile feedback must be overcome. The key switch locks into the pressed position.

Features

• Emergency stop in classic design
• PCB switching elements minimize assembly errors

Applications

• Measurement-control-regulation
• Mechanical and system engineering
• Agricultural and forestry machinery
• Construction machinery
