1.01.102.001/0205 | RAFI

Pushbutton, 2 pole, white, unlit , 2 A/250 V, mounting Ø 18.2 mm, IP40/IP65, 1.01.102.001/0205

Order No.: 12G461
EAN: 4099889192643
MPN:
1.01.102.001/0205
1.01.102.001/0205 RAFI Pushbutton Switches Image 1
1.01.102.001/0205 RAFI Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
14.7560 € *
Available: 320 pcs.
Next delivery: 100 pcs. on 2025-04-25
Leadtime: 7 Weeks **
Total Price:
14.76 € *
Price list
Quantity
Price per unit*
1 pcs.
14.7560 €
10 pcs.
13.2685 €
50 pcs.
12.5426 €
100 pcs.
11.8048 €
500 pcs.
11.0670 €
*incl. VAT plus shipping costs
**Subject to prior sale

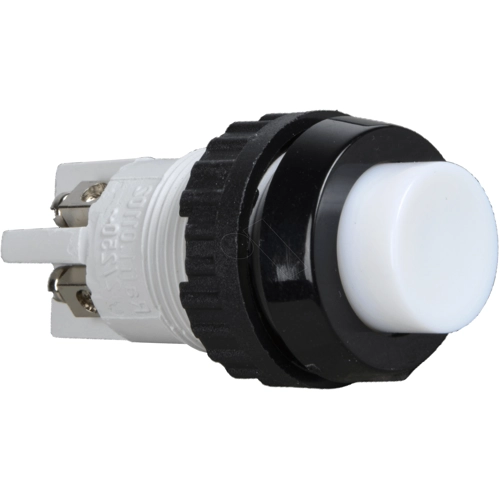

Pushbutton switch, not illuminated, type RAFI 1.01.102.

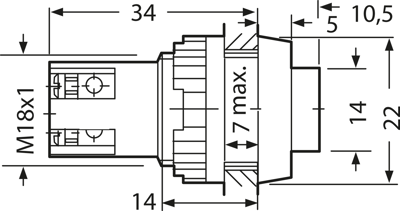

Panel-mount diameter: 18.2 mm, black collar and projecting lens, opaque. Mounting: threaded ring. Connections: screw terminals. Contact material: silver. Actuating force: max. 9.5 N/m. Actuating travel: 5.0 mm. Switching voltage: max. 250 VAC. Switching current: max. 2.0 A. Degree of protection (at the front): IP 40 (IP 65 with sealing cap). Operating temperatures: –25 to +85 °C.

2 x NO contacts, type 1.01.102.001/.

Technical attributes (type, lens color): 1.01.102.001/0205, white

Technical specifications
Connection Schraubanschluss
Design rund
Printed No
illuminated No
Installation diameter 18.2 mm
Actuator colour weiß
contact surface versilbert
Pin number 2-polig
Latching switching function tastend
Breaking capacity 2 A/250 V
Protection class IP40/IP65
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
