1.10.001.001/0205 | RAFI
Pushbutton, 1 pole, white, unlit , 0.7 A/250 V, mounting Ø 15.2 mm, IP40/IP65, 1.10.001.001/0205
Unit Price (€ / pc.)
5.6168 € *
Available: 194 pcs.
Leadtime: 9 Weeks **
Total Price:
5.62 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6168 €
10 pcs.
4.9385 €
100 pcs.
4.3316 €
250 pcs.
4.1650 €
1000 pcs.
3.8913 €
*incl. VAT plus shipping costs
**Subject to prior sale

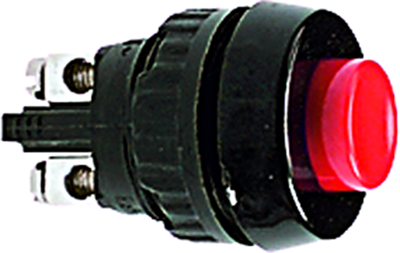

Pushbutton switches, not illuminated, type RAFI 1.10.001.

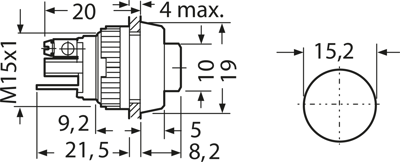

Panel-mount diameter: 15.2 mm, black round collar and projecting lens, opaque. Mounting: threaded ring. Contact material: silver. Actuating force: max. 7.5 N/m. Actuating travel: 3.0 mm. Switching voltage: max. 250 VAC. Switching current: max. 0.7 A. Degree of protection (at the front): IP 40 (IP 65 with sealing cap). Operating temperatures: –25 to +85 °C. ENEC.
1 x NO contact and screw terminals, type 1.10.001.001/.
Technical attributes (type, lens color): 1.10.001.001/0205, white
Technical specifications
| Connection | Schraubanschluss | |
| Design | rund | |
| Printed | No | |
| illuminated | No | |
| Installation diameter | 15.2 mm | |
| Actuator colour | weiß | |
| contact surface | versilbert | |
| Pin number | 1-polig | |
| Latching switching function | tastend | |
| Breaking capacity | 0,7 A/250 V | |
| Protection class | IP40/IP65 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
