1.10.001.161/0104 | RAFI

Pushbutton, 1 pole, black, unlit , 0.7 A/250 V, mounting Ø 15.2 mm, IP40/IP65, 1.10.001.161/0104

Order No.: 12G385
EAN: 4099889192483
MPN:
1.10.001.161/0104

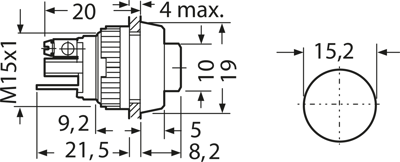

1.10.001.161/0104 RAFI Pushbutton Switches Image 1

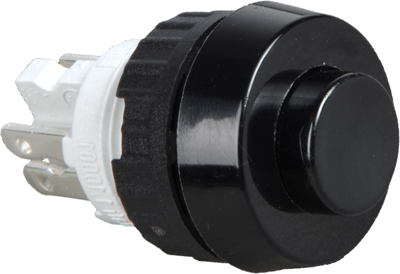

1.10.001.161/0104 RAFI Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
3.8437 € *
Available: 0 pcs.
Next delivery: 11 pcs. on 2025-04-11
Leadtime: 2 Weeks **
Total Price:
3.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8437 €

Pushbutton switches, not illuminated, type RAFI 1.10.001.

Panel-mount diameter: 15.2 mm, black round collar and projecting lens, opaque. Mounting: threaded ring. Contact material: silver. Actuating force: max. 7.5 N/m. Actuating travel: 3.0 mm. Switching voltage: max. 250 VAC. Switching current: max. 0.7 A. Degree of protection (at the front): IP 40 (IP 65 with sealing cap). Operating temperatures: –25 to +85 °C. ENEC.

1 x NC contact, 6.3 x 0.8 mm / 2 x 2.8 x 0.8 mm tab terminals, type 1.10.001.161/.

Technical attributes (type, lens color): 1.10.001.161/0104, black

Technical specifications
Connection Flachstecker 6,3 x 0,8 /2 x 2,8 x 0,8 mm
Design rund
Printed No
illuminated No
Installation diameter 15.2 mm
Actuator colour schwarz
contact surface versilbert
Pin number 1-polig
Latching switching function tastend
Breaking capacity 0,7 A/250 V
Protection class IP40/IP65
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
