1.10.102.001/0205 | RAFI
Pushbutton, 1 pole, white, unlit , 2 A/250 V, mounting Ø 16.2 mm, IP40/IP65, 1.10.102.001/0205
Unit Price (€ / pc.)
6.664 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

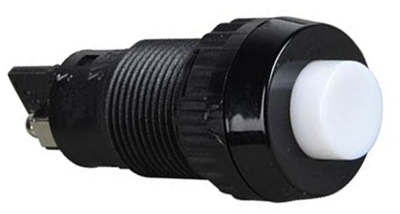

Pushbutton switches, not illuminated, type RAFI 1.10.102.

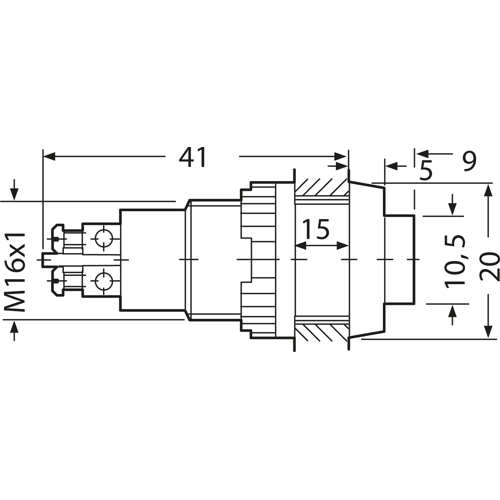

Panel-mount diameter: 16.2 mm, black collar and projecting lens, opaque. Mounting: threaded ring. Connections: screw terminals. Contact material: silver. Actuating force: max. 7.5 N/m. Actuating travel: 4.3 mm. Switching voltage: max. 250 VAC. Switching current: max. 2.0 A. Degree of protection (at the front): IP 40. Operating temperatures: –25 to +85 °C. Certifications: ENEC.
1 x NO contact, type 1.10.102.001/.
Technical attributes (type, lens color): 1.10.102.001/0205, white
Technical specifications
| Connection | screw connection | |
| Design | round | |
| Printed | No | |
| illuminated | No | |
| Installation diameter | 16.2 mm | |
| Actuator colour | white | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Breaking capacity | 2 A/250 V | |
| Protection class | IP40/IP65 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
