1.15.108.452/0000 | RAFI

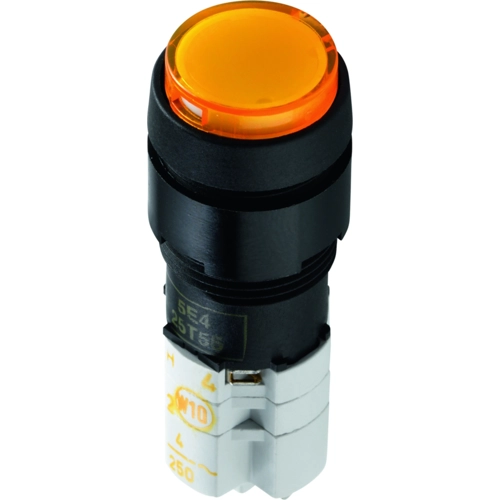

Name: Pushbutton, 4 pole, black, illuminated , 4 A/230 V, mounting Ø 16.2 mm, IP40, 1.15.108.452/0000
Brand: RAFI
SKU: 12G5801
Price: 27.89 EUR
Availability: InStock

Pushbutton, 4 pole, black, illuminated , 4 A/230 V, mounting Ø 16.2 mm, IP40, 1.15.108.452/0000

Order No.: 12G5801

EAN: 4099889193114

MPN:

1.15.108.452/0000

Series: LUMOTAST 75

Image may differ

Key Specification:

Schaltfunktion tastend

Polzahl 4-polig

Farbe Betätiger schwarz

Schaltleistung 4 A/230 V

beleuchtet Yes

Show 16 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

27.8936 € *

Available: 15 pcs.

Leadtime: 1 Week **

Total Price:

27.89 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pushbutton, 1.15.108.452/0000, RAFI

Pushbutton, 3 pole, black, illuminated , 4 A/250 V, mounting Ø 18 mm, IP40, 1.15.108.452/0000.

Technical specifications

	Anschluss	Lötanschluss
	Bauform	rund
	Bedruckt	No
	beleuchtet	Yes
	Einbaudurchmesser	16.2 mm
	Farbe Betätiger	schwarz
	Kontaktoberfläche	versilbert
	Polzahl	4-polig
	Schaltfunktion	tastend
	Schaltleistung	4 A/230 V
	Schutzart (Betätigungsseite)	IP40

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Produktänderung - EN Produktänderung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Produktänderung - DE Produktänderung

Logistics

Ursprungsland	HU
Zolltarifnummer	85365080

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

Accessory
