1.11.071.001/0220 | RAFI
LED signal light, 28 V, white, Mounting Ø 30.3 mm, LED number: 1, 1.11.071.001/0220
Unit Price (€ / pc.)
43.554 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

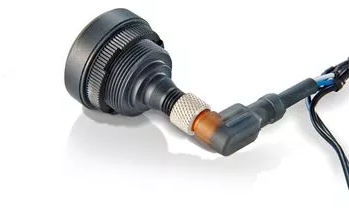

LED signal lamp, 1.11.071.001/0220, RAFI
The RAMO I signal lamp extendes with a bright and energy-efficient signal lamp. Due to the concave aperture, the beam and viewing angle is more than 180° and therefore optically different from the RAMO T pushbutton. This connection is easily made via Plug & Play without manual wiring - with M12 sensor cable.
Applications
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Vehicle construction
- Chemical industry
- Industrial robots
Technical specifications
| Anschluss | M12-Stecker, 4-polig | |
| Anzahl der LEDs | 1 | |
| Diodendurchmesser | 22 mm | |
| Einbaudurchmesser | 30.3 mm | |
| Farbe der Beleuchtung | weiß | |
| Montage | Schraubmontage | |
| Nennspannung | 28 V | |
| Nennstrom | 12 mA |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85414100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
