1.20.122.042/0000 | RAFI
Switch element, 2 Form A (N/O), latching, 240 V, 1.5 A, 1.20.122.042/0000
Unit Price (€ / pc.)
15.6485 € *
Available: 21 pcs.
Leadtime: 1 Week **
Total Price:
15.65 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6485 €
10 pcs.
13.7683 €
50 pcs.
12.8282 €
150 pcs.
12.2570 €
500 pcs.
11.6501 €
*incl. VAT plus shipping costs
**Subject to prior sale

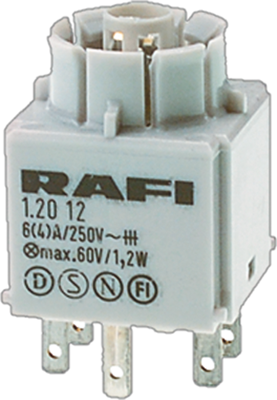

Standard switching element, 1.20.122.042/0000, RAFI
RAFIX 16 standard switching element is designed for actuators with one switching direction (pushbuttons, mushroom pushbuttons and toggle switches).
The switching element is available with a momentary contact or latching function, so that latching pushbuttons can also be achieved.
Features
- Optionally with latching function for visible switch function
- Mounting by snapping onto the actuator
- Disassembly by turning and pulling off
Applications
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Industrial robots
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Schaltelement | |
| Beleuchtbar | Yes | |
| Kontaktfunktion | rastend | |
| Kontaktmaterial | silber | |
| Nennspannung | 240 V | |
| Nennstrom | 1.5 A | |
| Schaltfunktion | 2 Schließer |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
