1.20.126.202/0000 | RAFI
Switch element, 1 Form A (N/O), groping, 240 V, 1.5 A, 1.20.126.202/0000
Unit Price (€ / pc.)
6.5093 € *
Available: 27 pcs.
Leadtime: 8 Weeks **

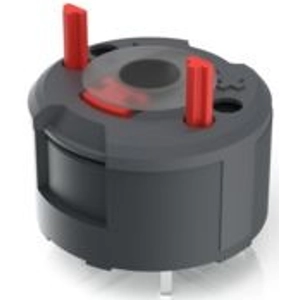

Switching element, 1.20.126.202/0000, RAFI
This switching element has external plungers and therefore can only be combined with pushbuttons, selector switches and keylock switches. The PCB switching element is positioned on a PCB shared with other components. This can subsequently be mounted behind the front panel together with the actuators and signal indicators.
Applications
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Signalling systems
- Vehicle construction
- Agricultural and forestry machinery
Technical specifications
| Connection | PCB connection | |
| Version | switch element | |
| can be illuminated | Yes | |
| Isolation voltage | 250 V | |
| Contact function | groping | |
| Contact material | silver | |
| Rated voltage | 240 V | |
| Rated current | 1.5 A | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
