1.20.126.305/0000 | RAFI

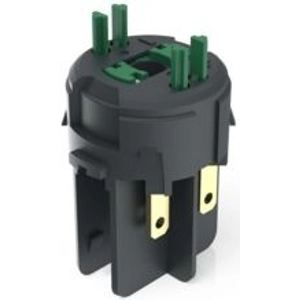

Switch element, 2 Form A (N/O), latching, 250 V, 4 A, 1.20.126.305/0000
Unit Price (€ / pc.)
14.1015 € *
Available: 8 pcs.
Leadtime: 7 Weeks **
Total Price:
14.10 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1015 €
5 pcs.
13.3637 €
10 pcs.
12.6973 €
20 pcs.
11.9000 €
*incl. VAT plus shipping costs
**Subject to prior sale
Switching element, 1201263050000, RAFI
This switching element have internal plungers and therefore can only be combined with emergency stop and mushroom pushbuttons. The QC switching elements can be latched into the actuators without the need for tools and with little effort. Wiring is performed in the conventional manner – directly with male quick-connect terminals. The fast and inexpensive version – in cases where no PCB is cost-effective.
Applications
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Signalling systems
- Vehicle construction
- Agricultural and forestry machinery
- Construction machinery
- Handheld terminals
- Industrial robots
Technical specifications
| Connection | plug-in connection | |
| Version | switch element | |
| can be illuminated | Yes | |
| Isolation voltage | 250 V | |
| Contact function | latching | |
| Contact material | silver | |
| Rated voltage | 250 V | |
| Rated current | 4 A | |
| Latching switching function | 2 Form A (N/O) |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
