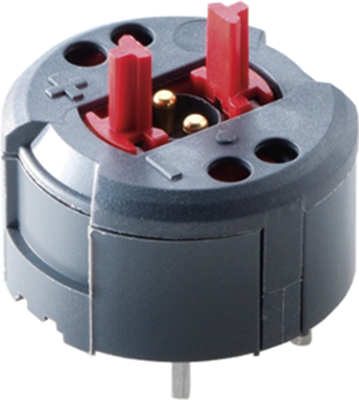

Switching element, 1.20.126.414/0000, RAFI
This switching element has external plungers and therefore can only be combined with pushbuttons, selector switches and keylock switches. The PCB switching element is positioned on a PCB shared with other components. This can subsequently be mounted behind the front panel together with the actuators and signal indicators.
Applications
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Signalling systems
- Vehicle construction
- Agricultural and forestry machinery
Technical specifications
| Connection | Leiterplattenanschluss | |
| Version | Schaltelement | |
| can be illuminated | Yes | |
| Isolation voltage | 50 V | |
| Contact material | gold | |
| Rated voltage | 35 V | |
| Rated current | 100 mA | |
| Latching switching function | 2 Öffner |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
