5.00.100.165/0000 | RAFI
Switch element, 1 Form A (N/O), groping, 35 V, 100 mA, 5.00.100.165/0000
Unit Price (€ / pc.)
9.2582 € *
Available: 18 pcs.
Leadtime: 8 Weeks **
Total Price:
9.26 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2582 €
10 pcs.
8.1515 €
50 pcs.
7.6041 €
150 pcs.
7.2590 €
500 pcs.
6.8901 €
*incl. VAT plus shipping costs
**Subject to prior sale

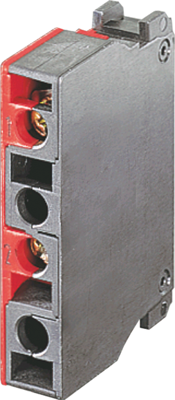

Switching element, 5.00.100.165/0000, RAFI
The switching element is first snapped into the coupling then onto the actuating element or the signal lamp. To release, a bayonet lever must be actuated.
Switching elements marked in different color prevent confusion in the bearing.
Features
- The connections are open, wiring can start immediately
- Time and material savings due to elimination of ferrules for stranded wires
- Mounting by snapping onto the actuator
- Less wiring effort by inserting the cables from the rear, as no bending of the wires is necessary.
- The screws are captively fixed in the terminal point
Applications
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Vehicle construction
Technical specifications
| Connection | screw connection | |
| Version | switch element | |
| can be illuminated | No | |
| Isolation voltage | 400 V | |
| Contact function | groping | |
| Contact material | gold | |
| Rated voltage | 35 V | |
| Rated current | 100 mA | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
