1.14.002.003/0000 | RAFI

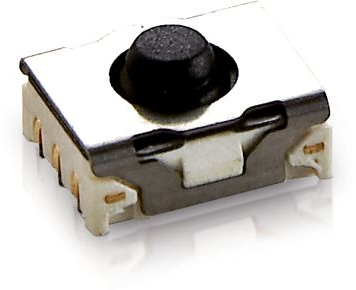

Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (black, L 1 mm), 3.6 N, SMD, 1.14.002.003/0000
Unit Price (€ / pc.)
0.8925 € *
Available: 3,775 pcs.
Leadtime: 9 Weeks **
MICON 5 tactile switches offer extreme switch reliability, with a very small space requirement. They can be arranged individually, in rows or as key blocks. For use beneath overlays, we recommend combining the MICON 5 key switches with plungers. The tactile switches are suitable for the most important soldering processes such as reflow soldering. Switching voltage: min. 20 mV, max. 35 V, switching current: min. 0.01 mA, max. 100 mA, switching capacity: max. 1.0 W, dielectric strength: 250 V, actuating force: 3.6 N, switching travel: 0.7 mm, contact material: gold, contact system: snap-action contact, connection on rear: SMT, installation height: 3.45 mm, operating temperature: -40 °C to 90 °C.
Technical specifications
| Anschluss | SMD | |
| beleuchtet | No | |
| Betätigungskraft | 3,6 N | |
| Breite | 5.1 mm | |
| Farbe Betätiger | schwarz | |
| Höhe | 3.45 mm | |
| Kontaktmaterial | vergoldet | |
| Länge | 6.4 mm | |
| Schaltfunktion | Schließer | |
| Schaltleistung | 100 mA/35 V | |
| Betätigerlänge | 1 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
| Originalverpackung | Rolle mit 2.100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
