3.14.100.532/0000 | RAFI

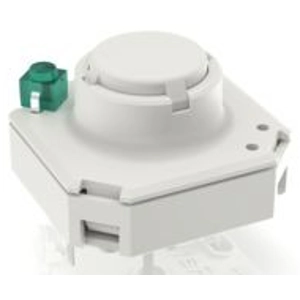

Tactile switch, 3141005320000, RAFI

The RF 15 R gold tactile switches have a 15 x 15 mm edge length, reliable gold contacts and a noticeable click. They are used in flat data entry keyboards under overlays or under keycaps, such as RAFI RK 90 keycaps. The round pressure pad of the RF 15 R requires round cut-outs in the front panel. These enable a narrow keyboard grid of just 15.24 mm with sufficiently large adhesive strips between the individual key switches. The overlay, which we recommend embossing above the key switches, can be glued onto these strips of glue.

Features

• Gold contacts, reliable switching with low currents
• Round plunger / key switch shape
• Round cut-outs in the front panel

Applications

• Measurement-control-regulation
• Mechanical and system engineering
• Automotive
• Electro-medical
