CV7367-000 | Raychem
Beaded heat shrink sleeve, angled, S1 (29.97/29.97 mm), S2 (14.2/5.9 mm), CV7367-000
Order No.: 34P4348
EAN: 4099891281090
MPN:
CV7367-000
222K132-25L-0
Unit Price (€ / pc.)
25.3113 € *
Available: 0 pcs.
Leadtime: 22 Weeks **

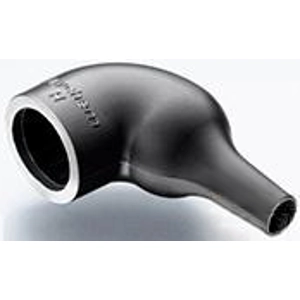

Heat shrink boot, CV7367-000, Raychem
This heat shrink boot is designed to be used in conjunction with other System 25 components such as DR-25 tubing and S1125 adhesive, providing a complete cable harness system capability. This product has been specifically formulated and designed to provide optimum high-temperature fluid resistance and long-term heat resistance. This unique balance of properties makes it particularly suitable for sealing and strain relief at connector-cable terminations and cable-to-cable transitions on military vehicle cables and harnesses.
Features
- Heat-shrinkable, semi-rigid, chemical- and abrasion resistant molded shapes
- Excellent resistance to high temperature fluids
- Resistance to long-term exposure at elevated temperatures
Technical specifications
| Ausführung | abgewinkelt | |
| Brennbar | Yes | |
| Farbe | schwarz | |
| Innenkleber vorhanden | No | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -75 °C | |
| Wanddicke | 0.8 mm |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
