CQ50583001 | Raychem

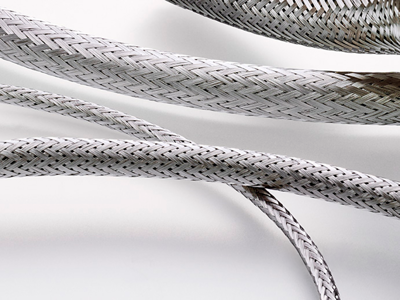

Metal braided sleeve, inner Ø 3 mm, range 3-4.5 mm, -65 to 150 °C, CQ50583001
Order No.: 34P6021
EAN: 4099891192587
MPN:
CQ50583001
LWB-101-3.0(10)
Unit Price (€ / mtr.)
36.7472 € *
Available: 0 mtr.
Leadtime: 27 Weeks **
Total Price:
11,024.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 mtr.
36.7472 €
Heat-shrinkable Tubing, VERSAFLEX-04-0-SP, Raychem
VERSAFLEX-04-0-SP is suited for the mechanical protection of wire harnesses, hoses, and all other applications where exceptional flexibility combined with superior abrasion/cut resistance is required.
Features
- Excellent abrasion and cutthrough resistance
- Lightweight
- Fungus proof
- Not affected by most chemical and solvents, non-hygroscopic
- RoHS compliant
Technical specifications
| Version | Metall-Geflechtschlauch | |
| Application range | 3-4,5 mm | |
| Inner diameter | 3 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Optical Coverage | 90 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444920 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
