024278-000 | Raychem

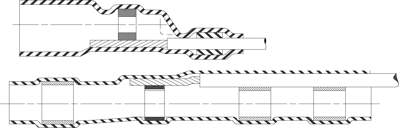

Butt connector kit with heat shrink insulation, 0.38 mm², AWG 22, transparent blue, 17 mm, 024278-000
Order No.: 34P3403
EAN: 4099889605228
MPN:
024278-000
D-181-3222-90/9
Unit Price (€ / pc.)
16.4815 € *
Available: 0 pcs.
Leadtime: On Request **
Coax Cable Termination, 024278 - 000, Raychem
Temperature Indicator: No, Coax Cable Termination Product Type: Coax Terminator, Coax Cable Termination Applies To: Coaxial Cable, Splice Type: SolderSleeve, Pre - Installed Lead Type: 55A0111, Lead Stranding: Stranded, Cable Shield Material: Silver,Tin, Shield Outside Diameter (Max): 0.18 in, Termination Method: Solder, Pre - Installed Lead Wire Size: 0.38 mm², Jacket Outside Diameter: 2.54 - 5.2 mm, Coax Cable Termination Conductor Outside Diameter: 0.3 - 0.7 mm, Dielectric Outside Diameter: 30.95 mm, Overall Length: 17 mm,21.5 mm, Resistance Properties: Immersion Protection, Coax Cable Termination Operating Temperature (Max): 150 °C, MIL/NAS Specification (MIL - S - 83519, NAS - 1747): No, Government Qualified: No
Technical specifications
| Version | butt connector kit | |
| AWG cross-section | AWG 22 | |
| Colour | transparent blue | |
| Isolated | Yes | |
| Length | 17 mm | |
| Cable cross-section | 0.38 mm² | |
| Material | PVDF | |
| shrinkable tubing | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
