365711-000 | Raychem

Butt connector with heat shrink insulation, 0.34-0.75 mm², AWG 22 to 18, red, 37 mm, 365711-000

Order No.: 34P1889
EAN: 4099889604535
MPN:
365711-000
D-406-2007

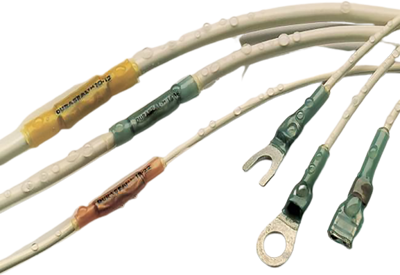

365711-000 Raychem Butt splices
Image may differ
Unit Price (€ / pc.)
1.3447 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
201.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
150 pcs.
1.3447 €

Splices, 365711 - 000, Raychem

Barrel Style: Standard, Splice Product Type: Crimp Splice, Sealable: Yes, Splice Type: Butt Splice,In - Line Splice, Serrated: No, Plating Material: Tin, Splice Material: Copper Alloy, Splice Color: Red, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Termination Method: Crimp, Wire Insulation Support: With, Outside Diameter: 4.3 mm, Wire Size: 18 - 22 AWG, Wire Size: 0.75 - 0.34 mm², Splice Overall Length: 37 mm, Insulation Requirement: Fully Insulated, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Package

Technical specifications
Version Stoßverbinder
Cable cross-section 0,34-0,75 mm²
AWG cross-section AWG 22 bis 18
Isolated Yes
Colour rot
Material Kupferlegierung
shrinkable tubing Yes
Length 37 mm
Logistics
Country of origin US
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
