385193-000 | Raychem

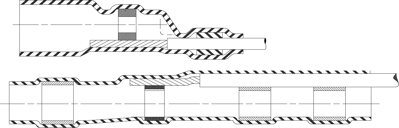

Butt connector kit with heat shrink insulation, 0.24 mm², AWG 24, transparent blue, 17 mm, 385193-000
Order No.: 34P3402
EAN: 4099889605211
MPN:
385193-000
D-181-2224-90/9
Unit Price (€ / pc.)
7.6636 € *
Available: 0 pcs.
Leadtime: 46 Weeks **
Coax Cable Termination, 385193 - 000, Raychem
Temperature Indicator: No, Coax Cable Termination Product Type: Coax Terminator, Coax Cable Termination Applies To: Coaxial Cable, Splice Type: SolderSleeve, Pre - Installed Lead Type: 55A0111, Lead Stranding: Stranded, Cable Shield Material: Silver,Tin, Shield Outside Diameter (Max): 0.14 in, Termination Method: Solder, Pre - Installed Lead Wire Size: 0.24 mm², Jacket Outside Diameter: 1.9 - 4.3 mm, Coax Cable Termination Conductor Outside Diameter: 0.3 - 0.7 mm, Dielectric Outside Diameter: 2.9 mm, Overall Length: 17 mm,22.7 mm, Resistance Properties: Immersion Protection, Coax Cable Termination Operating Temperature (Max): 150 °C, MIL/NAS Specification (MIL - S - 83519, NAS - 1747): No, Government Qualified: No
Technical specifications
| Ausführung | Stoßverbinder Set | |
| AWG-Leiterquerschnitt | AWG 24 | |
| Farbe | transparent blau | |
| Isoliert | Yes | |
| Länge | 17 mm | |
| Leiterquerschnitt | 0,24 mm² | |
| Material | PVDF | |
| Schrumpfschlauch | Yes |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | No |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
