531759-000 | Raychem

Butt connector with heat shrink insulation, 0.38 mm², AWG 22, transparent blue, 19.1 mm, 531759-000

Order No.: 34P3776
EAN: 4099889608182
MPN:
531759-000
ST63-5-55-22-90
Raychem

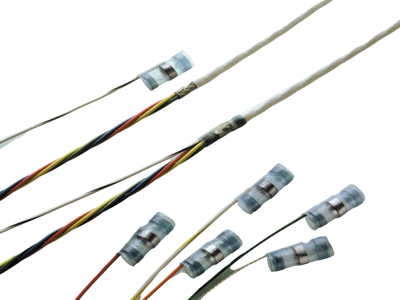

531759-000 Raychem Butt splices Image 1

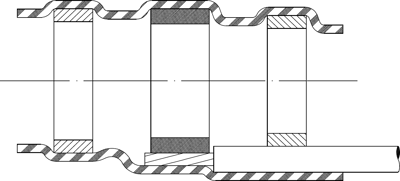

531759-000 Raychem Butt splices Image 2
Image may differ
Unit Price (€ / pc.)
3.9508 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
3.9508 €

SolderSleeve Shield Terminator, 531759-000, Raychem

Temperature Indicator: None, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre-Installed Lead Type: Yes, Pre-Installed Lead: Yes, Lead Stranding: Stranded, Termination Method: Solder, Jacket Outside Diameter: 7 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): , SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 4.3 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 150 °C, Resistance Properties: Immersion Protection, Wire Temperature (Max): 150 °C, MIL/NAS Specification (MIL-S-83519, NAS-1747): RT-1404

Technical specifications
Version butt connector
AWG cross-section AWG 22
Colour transparent blue
Length 19.1 mm
Cable cross-section 0.38 mm²
Material PVDF
shrinkable tubing Yes
Logistics
Country of origin TW
Customs tariff number 85366910
Compliance
RoHS conform No
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
