594677-000 | Raychem

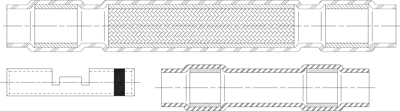

Butt connector kit with heat shrink insulation, 0.75-1.5 mm², AWG 18 to 16, transparent blue, 105.92 mm, 594677-000
Order No.: 34P2243
EAN: 4099889604689
MPN:
594677-000
D-150-0180
Unit Price (€ / pc.)
67.0089 € *
Available: 0 pcs.
Leadtime: On Request **
Splice, 594677 - 000, TE Connectivity
Splice Product Type: SolderShield Splice Kit, Sealable: Yes, Splice Type: One - to - One Splice, Splice Wire/Cable Type: Multi - Conductor, Insulated: Yes, Number of Conductors: Four - conductor cable,Three - conductor cable, Plating Material: Tin/Silver, Splice Material: Copper Alloy, Splice Color: Blue, Terminal & Splice Type: Splice, Wire Size: 16 - 18 AWG, Wire Size: 1.5 - 0.75 mm², Splice Overall Length: 105.92 mm, Operating Temperature Range: - 55 - 150 °C
Technical specifications
| Version | butt connector kit | |
| AWG cross-section | AWG 18 to 16 | |
| Colour | transparent blue | |
| Isolated | Yes | |
| Length | 105.92 mm | |
| Cable cross-section | 0.75-1.5 mm² | |
| Material | PVDF | |
| shrinkable tubing | Yes |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
