608633-000 | Raychem

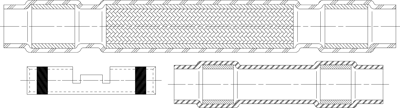

Butt connector kit with heat shrink insulation, 0.75-1.5 mm², AWG 18 to 16, transparent blue, 105.92 mm, 608633-000
Order No.: 34P2250
EAN: 4099889604740
MPN:
608633-000
D-150-0232
Unit Price (€ / pc.)
64.4266 € *
Available: 0 pcs.
Available in 5 Days: 50 pcs.
Leadtime: 21 Weeks **
Total Price:
64.43 € *
Price list
Quantity
Price per unit*
1 pcs.
64.4266 €
5 pcs.
60.5591 €
10 pcs.
56.3227 €
25 pcs.
51.8126 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splices, 608633 - 000, Raychem
Splice Product Type: SolderShield Splice Kit, Sealable: Yes, Splice Type: One - to - One Splice, Serrated: No, Splice Barrel Type: Closed Barrel, Number of Conductors: 2, Weight per Piece: 7.75 g, Splice Material: Copper Alloy, Splice Color: Blue, Terminal & Splice Type: Splice, Termination Method: Crimp,Solder, Wire Size: 16 - 18 AWG, Wire Size: 1.5 - 0.75 mm², Splice Overall Length: 105.92 mm, Cable Temperature Rating: 135 °C, Operating Temperature Range: - 55 - 150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 10, Splice Packaging Method: Box
Technical specifications
| Version | Stoßverbinder Set | |
| Cable cross-section | 0,75-1,5 mm² | |
| AWG cross-section | AWG 18 bis 16 | |
| Isolated | Yes | |
| Colour | transparent blau | |
| Material | Kupferlegierung | |
| shrinkable tubing | Yes | |
| Length | 105.92 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
