650150-000 | Raychem

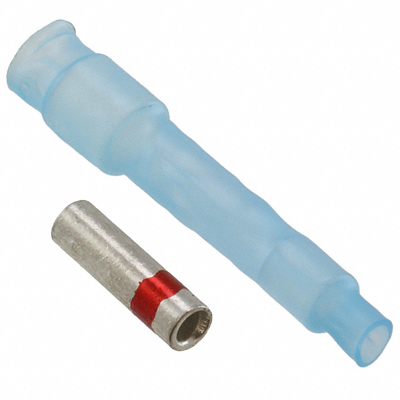

Butt connector with heat shrink insulation, 0.15-0.75 mm², AWG 26 to 20, transparent blue, 19.77 mm, 650150-000
Unit Price (€ / pc.)
9.2939 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Splice, 650150 - 000, TE Connectivity
Splice Product Type: Splice, Sealable: Yes, Splice Type: In - Line Splice, Serrated: No, Splice Accessory Type: Splice, Number of Serrations: 0. Insulation Material: Modified Polyvinylidene, Splice Features: Splice Kit, Splice Material: Nickel - Plated, Terminal & Splice Type: Splice, Wire Size: 26 - 20 AWG, Wire Size: 0.15 - 0.75 mm², Barrel Inside Diameter: 1.2 mm, Wire Size: 304 - 1216 CMA, Splice Overall Length: 19.77 mm, Operating Temperature Range: - 65 - 175 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Bag/Box
Technical specifications
| Version | Stoßverbinder | |
| Cable cross-section | 0,15-0,75 mm² | |
| AWG cross-section | AWG 26 bis 20 | |
| Isolated | Yes | |
| Colour | transparent blau | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 19.77 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
