680328-000 | Raychem

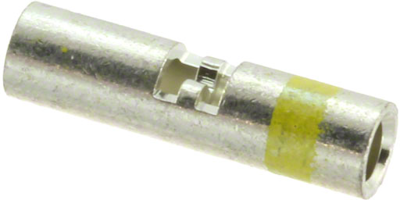

Butt connectorwith insulation, 1.21-2.94 mm², AWG 16 to 12, yellow, 14.86 mm, 680328-000
Unit Price (€ / pc.)
3.7604 € *
Available: 0 pcs.
Available in 5 Days: 1,321 pcs.
Leadtime: 18 Weeks **
Total Price:
3.76 € *
Price list
Quantity
Price per unit*
25 pcs.
3.7604 €
150 pcs.
3.5462 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splice, 680328 - 000, TE Connectivity
Splice Product Type: Splice, Splice Type: In - Line Splice, Serrated: No, Splice Accessory Type: Splice, Splice Barrel Type: Closed Barrel, Number of Serrations: 0. Splice Material: Tin - Plated Copper, Terminal & Splice Type: Splice, Wire Size: 16 - 12 AWG, Wire Size: 1.21 - 2.94 mm², Barrel Inside Diameter: 2.54 mm, Wire Size: 2426 - 5874 CMA, Splice Overall Length: 14.86 mm, Operating Temperature Range: - 55 - 150 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Bag/Box
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 16 to 12 | |
| Colour | yellow | |
| Isolated | Yes | |
| Length | 14.86 mm | |
| Cable cross-section | 1.21-2.94 mm² | |
| Material | copper alloy | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
