680881-000 | Raychem
PCB terminator with heat shrink insulation, 0.5-0.14 mm², AWG 26 to 20, transparent blue, 13.2 mm, 680881-000
Order No.: 34P3810
EAN: 4099889608434
MPN:
680881-000
B-801-06
Unit Price (€ / pc.)
14.6727 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
14.67 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6727 €
10 pcs.
13.5065 €
50 pcs.
12.1499 €
100 pcs.
10.9361 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splices, 680881 - 000, Raychem

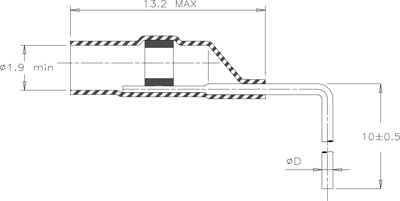

Splice Product Type: PCB Terminator, Sealable: No, Splice Type: PINPAK, Splice Wire/Cable Type: Silver - Plated,Tin - Plated, Insulated: Yes, Insulation Material: Heat Shrink Radiation - Crosslinked Modified Polyvinylidene, Terminal & Splice Type: Splice, Termination Method: Solder, Housing Material: Polyvinylidene, Inside Diameter (Recovered): 0.5 mm, Wire Size: 20 - 26 AWG, Wire Size: 0.5 - 0.14 mm², Splice Wire Insulation Diameter (Max): 1.9 mm, Splice Overall Length: 13.2 mm, Cable Temperature Rating: 125 °C, Operating Temperature Range: - 55 - 150 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Bag
Technical specifications
| Ausführung | Leiterplattenterminator | |
| AWG-Leiterquerschnitt | AWG 26 bis 20 | |
| Farbe | transparent blau | |
| Isoliert | Yes | |
| Länge | 13.2 mm | |
| Leiterquerschnitt | 0,5-0,14 mm² | |
| Material | PVDF | |
| Schrumpfschlauch | Yes |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | No |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
