695463-000 | Raychem

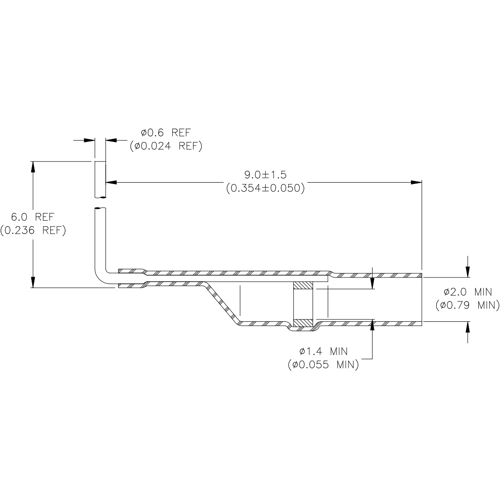

PCB terminator with heat shrink insulation, 0.14-0.34 mm², AWG 26 to 22, transparent blue, 9 mm, 695463-000
Order No.: 34P3818
EAN: 4099889608472
MPN:
695463-000
B-801-36
Unit Price (€ / pc.)
10.2578 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Splices, 695463 - 000, Raychem
Splice Product Type: PCB Terminator, Sealable: No, Splice Type: PINPAK, Splice Wire/Cable Type: Stranded Wire, Insulated: Yes, Insulation Material: Heat Shrink Radiation - Crosslinked Modified Polyvinylidene, Terminal & Splice Type: Splice, Termination Method: Solder, Housing Material: Polyvinylidene, Inside Diameter (Recovered): 1.4 mm, Wire Size: 22 - 26 AWG, Wire Size: 0.34 - 0.14 mm², Splice Wire Insulation Diameter (Max): 1.4 mm, Splice Overall Length: 9 mm, Cable Temperature Rating: 125 °C, Operating Temperature Range: - 55 - 150 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Bag
Technical specifications
| Ausführung | Leiterplattenterminator | |
| AWG-Leiterquerschnitt | AWG 26 bis 22 | |
| Farbe | transparent blau | |
| Isoliert | Yes | |
| Länge | 9 mm | |
| Leiterquerschnitt | 0,14-0,34 mm² | |
| Material | PVDF | |
| Schrumpfschlauch | Yes |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | No |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
