705692-000 | Raychem

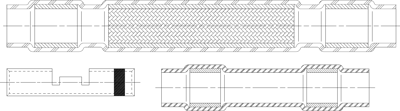

Butt connector kit with heat shrink insulation, 0.5-0.14 mm², AWG 26 to 20, red, 105.92 mm, 705692-000
Order No.: 34P2241
EAN: 4099889604672
MPN:
705692-000
D-150-0178
Unit Price (€ / pc.)
116.0845 € *
Available: 0 pcs.
Leadtime: On Request **
Splices, 705692 - 000, Raychem
Splice Product Type: SolderShield Splice Kit, Sealable: Yes, Splice Type: One - to - One Splice, Serrated: No, Splice Barrel Type: Closed Barrel, Splice Configuration: Single to Single, Plating Material: Tin/Silver, Splice Material: Copper Alloy, Splice Color: Red, Terminal & Splice Type: Splice, Termination Method: Crimp,Solder, Wire Size: 20 - 26 AWG, Wire Size: 0.5 - 0.14 mm², Splice Overall Length: 105.92 mm, Cable Temperature Rating: 135 °C, Operating Temperature Range: - 55 - 150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 10, Splice Packaging Method: Package
Technical specifications
| Version | butt connector kit | |
| AWG cross-section | AWG 26 to 20 | |
| Colour | red | |
| Isolated | Yes | |
| Length | 105.92 mm | |
| Cable cross-section | 0.5-0.14 mm² | |
| Material | copper alloy | |
| shrinkable tubing | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
