839158-000 | Raychem
Butt connector with heat shrink insulation, 0.61 mm², AWG 20, white/black, 19.1 mm, 839158-000
Order No.: 34P3474
EAN: 4099889605730
MPN:
839158-000
SO63-5-55-20-90
Unit Price (€ / pc.)
7.378 € *
Available: 0 pcs.
Leadtime: On Request **

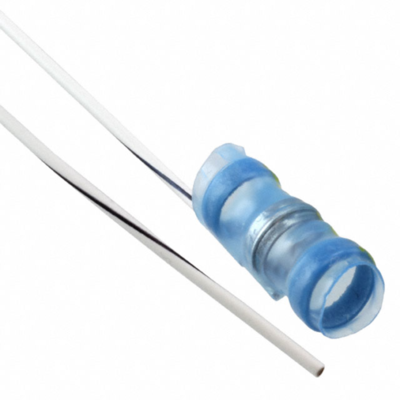

Shield Terminator, 839158-000, TE Connectivity
Splice Type: Shield Terminator, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre-Installed Lead Type: 55A0111, Pre-Installed Lead: Yes, Lead Stranding: Stranded, Termination Method: Solder, Jacket Outside Diameter: 7 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 7 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 2.5 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 150 °C, Resistance Properties: Immersion Protection, Wire Temperature (Max): 125 °C, Government Qualified: No
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 20 | |
| Colour | white/black | |
| Isolated | Yes | |
| Length | 19.1 mm | |
| Cable cross-section | 0.61 mm² | |
| Material | PVDF | |
| shrinkable tubing | Yes |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
