A65903-000 | Raychem

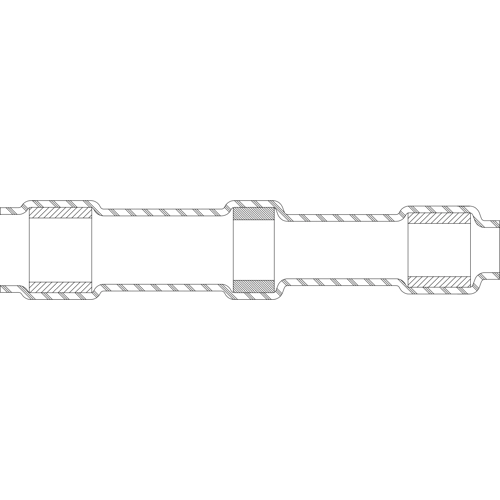

Butt connector with heat shrink insulation, transparent blue, 16.5 mm, A65903-000
Order No.: 34P3701
EAN: 4099889607543
MPN:
A65903-000
S200-3-00
Unit Price (€ / pc.)
7.5446 € *
Available: 0 pcs.
Leadtime: On Request **
SolderSleeve Shield Terminator, A65903-000, Raychem
Temperature Indicator: Yes, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre-Installed Lead: No, Termination Method: Solder, Jacket Outside Diameter: 4.3 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 4.32 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 1.25 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 200 °C, Resistance Properties: Immersion Protection, Wire Temperature (Max): 150 °C, Government Qualified: No
Technical specifications
| Version | butt connector | |
| Colour | transparent blue | |
| Isolated | Yes | |
| Length | 16.5 mm | |
| Material | fluoropolymer | |
| shrinkable tubing | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
