CC2645-000 | Raychem

Butt connector with heat shrink insulation, 4.0-6.0 mm², AWG 12 to 10, yellow, 37.5 mm, CC2645-000

Order No.: 34P1886
EAN: 4099889604528
MPN:
CC2645-000
D-406-0003CS50
CC2645-000 Raychem Butt splices

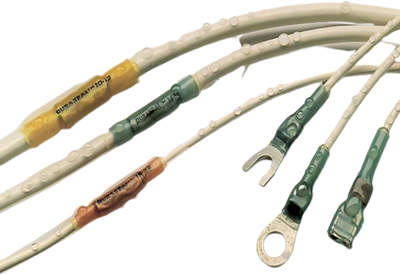

Image may differ
Unit Price (€ / pc.)
1.1781 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
3,887.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3300 pcs.
1.1781 €

Splices, CC2645 - 000, Raychem

Splice Product Type: DuraSeal Crimp Splice, Sealable: Yes, Splice Type: Butt Splice,In - Line Splice, Insulated: Yes, Voltage (Max): 600 VAC, Weight per Piece: 30 g, Splice Material: Copper, Splice Color: Yellow, Terminal & Splice Type: Splice, Termination Method: Crimp, Wire Size: 10 - 12 AWG, Wire Size: 6 - 4 mm², Splice Wire Insulation Diameter (Max): 2.8 mm, Splice Overall Length: 37.5 mm, Insulation Requirement: Fully Insulated, Government Qualified Splice: No, Packaging Quantity: 50, Splice Packaging Method: Loose Piece, Military Category: No

Technical specifications
Version Stoßverbinder
Cable cross-section 4,0-6,0 mm²
AWG cross-section AWG 12 bis 10
Isolated Yes
Colour gelb
Material Kupferlegierung
shrinkable tubing Yes
Length 37.5 mm
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
