929926-000 | Raychem

STD marker, 929926-000, RAYCHEM

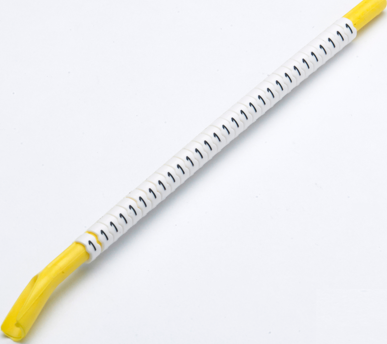

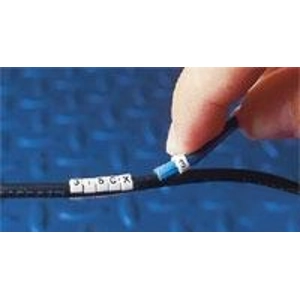

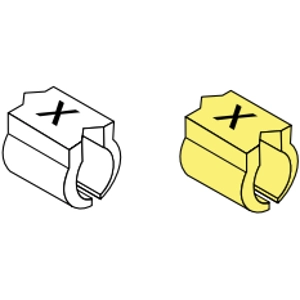

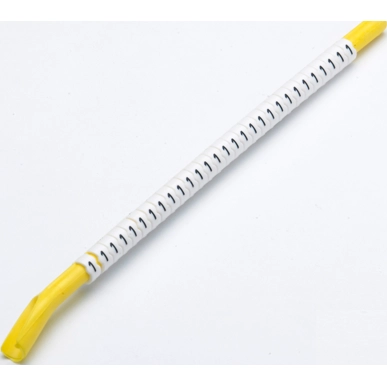

STD marker is an individual snap on marker used to identify wires and small cables permanently. The marker is side-entry installed using an applicator wand, so allowing identification after termination and/or installation. This marker has an expanding profile which enable markers to accommodate a wide range of wire and small cable sizes. This marker is a white, chevron cut variant, to ensure the legend remains aligned.

Manufactured using a zero halogen polyoxymethylene (POM) compound, this marker lends itself to installations where a permanent solution is required. Ideally suited for use in energy projects including power stations, oil refineries and offshore platforms.

Features

• Secure grip for positive fixing to cable
• Applicator has a patented slit to prevent over-expansion of the marker during application
• The high elasticity of the marker enables material to be installed without damaging the substrate
• Ten sizes for cable diameters 1.0 to 19.0 mm
• Excellent resistance to burning - UL94 HB rated

Applications

• Identification of small wires and cables, including optical fibres
