2525592005 | Raychem
Heatshrink tubing, 4:1, (5.75/1.25 mm), PE, black, 2525592005
Unit Price (€ / pc.)
2.7132 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

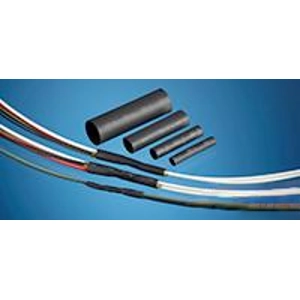

Heat shrink tubing, CGPT-4.8/2.4-2-SP, Raychem
CGPT-4.8/2.4-2-SP is a tough, flexible, general purpose polyolefin tubing with good resistance to common fluids and solvents and a high dielectric strength. Its unique blend of chemical, electrical, and physical properties makes it suitable for a wide range of applications, including electrical insulation, strain relief, cable bundling, colorcoding and identification of wires, cables, pipes, and electrical and electronic components, and mechanical protection.
Features
- 2:1 and 3:1 Shrink ratio
- Very good chemical and solvent resistance
- Flexible
- Excellent physical and electrical performance
- RoHS compliant
Technical specifications
| Colour | schwarz | |
| Inner diameter after shrinkage | 1.25 mm | |
| Inner diameter before shrinkage | 5.75 mm | |
| contains glue inside | No | |
| Length | 1.2 m | |
| Material | PE | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Shrinking rate | 4:1 | |
| Shrinking temperature | 135 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
