3301204001 | Raychem

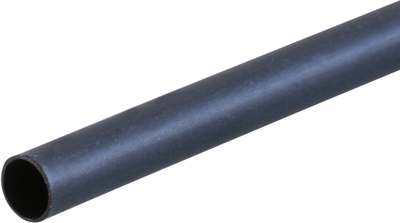

Heatshrink tubing, 2:1, (25.4/12.7 mm), PE, crosslinked, black, 3301204001
Unit Price (€ / mtr.)
4.2483 € *
Available: 0 mtr.
Leadtime: 12 Weeks **
Heat shrink tubing, CGPT-R-19-0, Raychem
CGPT-R-19-0 is a tough, flexible, general purpose polyolefin tubing with good resistance to common fluids and solvents and a high dielectric strength. Its unique blend of chemical, electrical, and physical properties makes it suitable for a wide range of applications, including electrical insulation, strain relief, cable bundling, colorcoding and identification of wires, cables, pipes, and electrical and electronic components, and mechanical protection.
Features
- 2:1 and 3:1 Shrink ratio
- Very good chemical and solvent resistance
- Flexible
- Excellent physical and electrical performance
- RoHS compliant
Technical specifications
| Colour | schwarz | |
| Inner diameter after shrinkage | 12.7 mm | |
| Inner diameter before shrinkage | 25.4 mm | |
| contains glue inside | No | |
| Material | PE, vernetzt | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 95 °C | |
| Wall thickness | 0.89 mm | |
| Inch Size | 1 |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
