463453J001 | Raychem

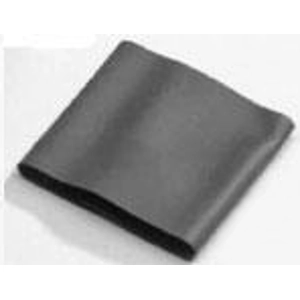

Heatshrink tubing, 2:1, (2.9/1.25 mm), PE, black, 463453J001
Unit Price (€ / mtr.)
0.9044 € *
Available: 0 mtr.
Available in 5 Days: 400 mtr.
Leadtime: 11 Weeks **
Heat shrink tubing, RT-375-1/8-X-SP, Raychem
RT-375-1/8-X-SP is a clear, flame-resistant, flexible, fluoropolymer tubing. This product provides bundling and jacketing of wires and cables, protecting them from mechanical and chemical abuse.
Features
- 2:1 Shrink ratio
- Exceptional clarity and clarity stability
- High flame-resistance
- RoHS compliant
Technical specifications
| Colour | black | |
| Inner diameter after shrinkage | 1.25 mm | |
| Inner diameter before shrinkage | 2.9 mm | |
| contains glue inside | No | |
| Material | PE | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -30 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 70 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
