5052962027 | Raychem

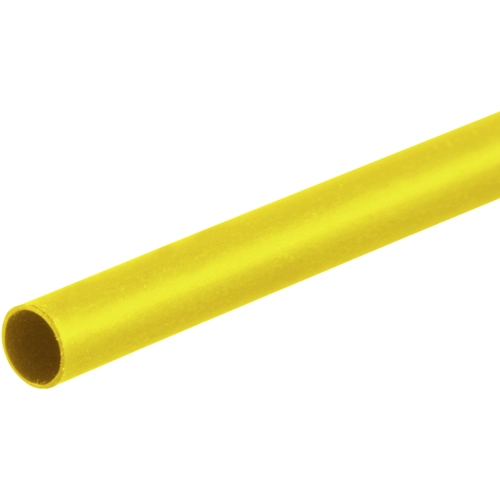

Heatshrink tubing, 2:1, (2.4/1.2 mm), PE, crosslinked, yellow, 5052962027
Unit Price (€ / pc.)
1.9516 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Heat shrink tubing, HFT5000-40/20-0-SP, Raychem
HFT5000-40/20-0-SP is designed primarily to provide mechanical abrasion protection for components such as rubber hoses, plastic pipes, and harness wiring bundles. Also is suitable for other applications, such as noise and rattle suppression.
Features
- 2:1 Shrink ratio
- Highly flexible woven fabric tubing
- Halogen free
- RoHS compliant
Technical specifications
| Farbe | gelb | |
| Innendurchmesser nach Schrumpfung | 1.2 mm | |
| Innendurchmesser vor Schrumpfung | 2.4 mm | |
| Innenkleber vorhanden | No | |
| Länge | 1.2 m | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 95 °C | |
| Wanddicke | 0.51 mm | |
| Zollgröße | 3/32 |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
